Stamping
Technical Capabilities
Core Strengths
Equipped with industry-leading stamping and mold machining equipment, our facility offers stamping capabilities ranging from 60T to 1,000T. Combined with slow-wire EDM with ±0.002mm precision and CNC machining centers with a 3.2m stroke, we are capable of independently designing and manufacturing a wide variety of complex parts.
Strict process discipline and end-to-end quality control ensure consistency from initial trial production through to mass delivery. We have provided long-term, stable supply services to numerous automotive OEMs and industrial brands.
Industry Experience
0
+
Patent
0
Utilization Rate
0
%
Quality Certification
0
%
Manufacturing Workflow
Requirement Confirmation
Drawing Review / Process Planning
Mold Development
Design / Manufacturing / Mold Testing
Production
Progressive Die / Transfer Die
Quality Inspection
Coordinate Measuring Machine / Online Spot Checks
Packaging and Delivery
IATF Standards

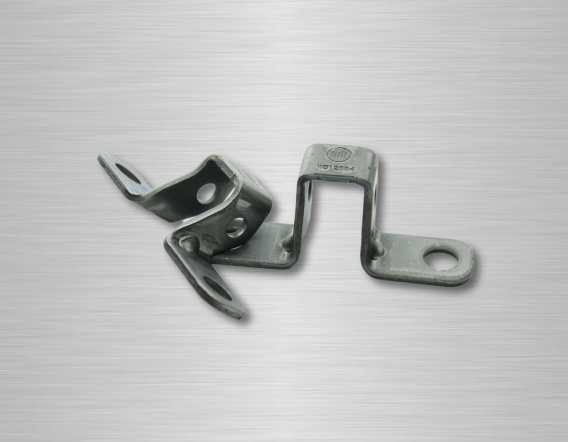

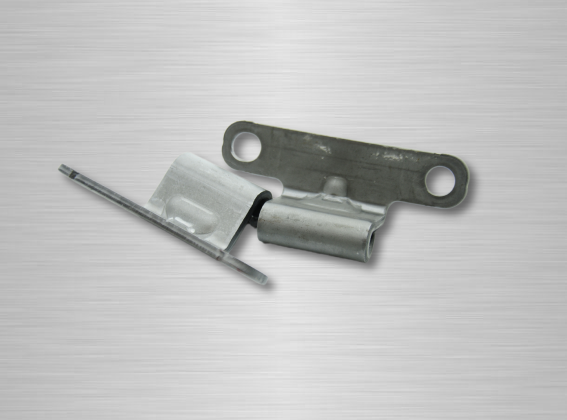

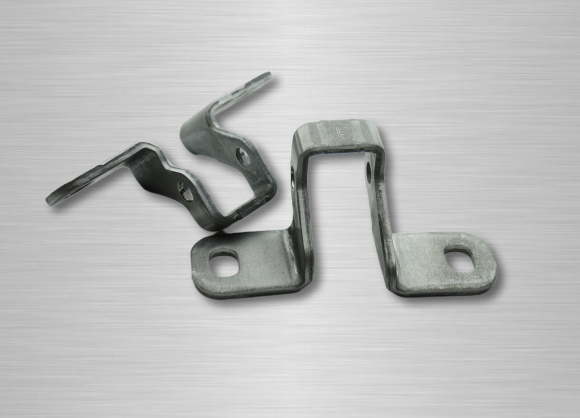

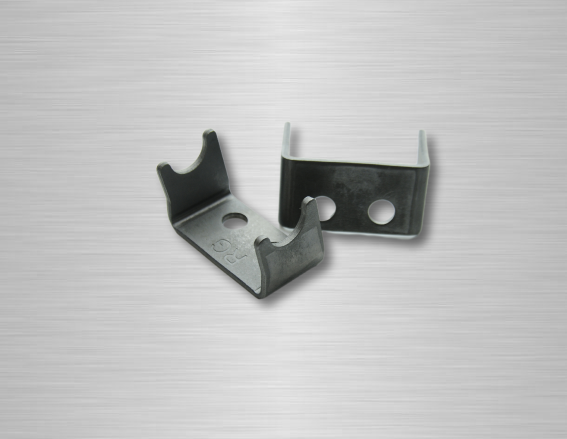

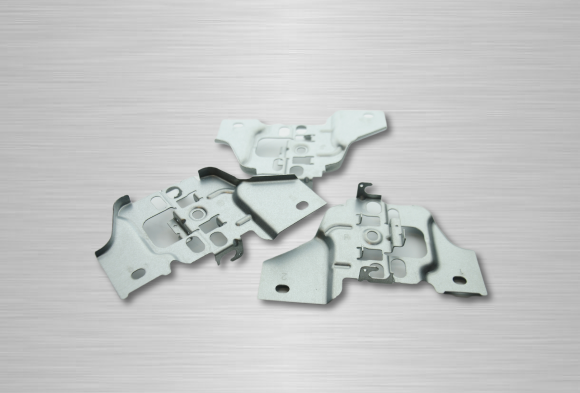

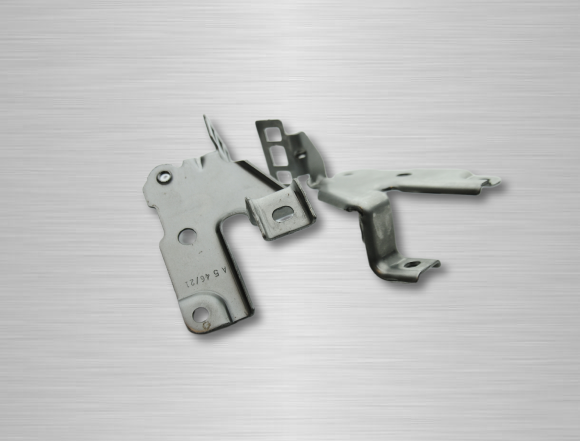

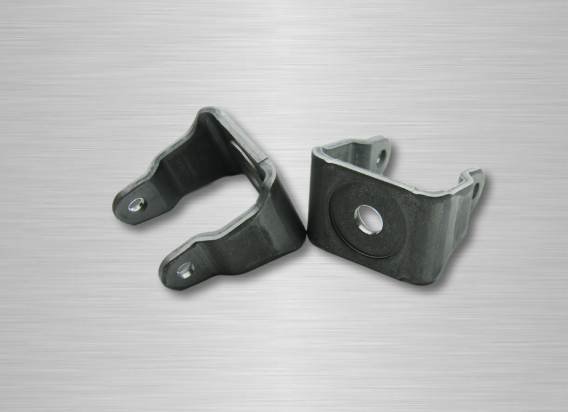

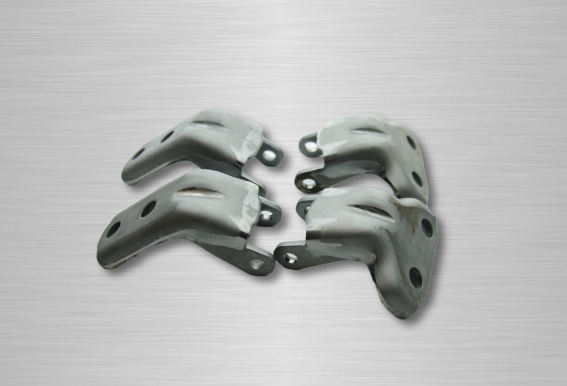

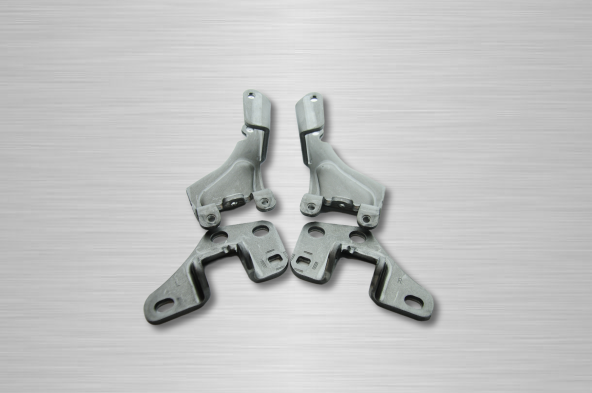

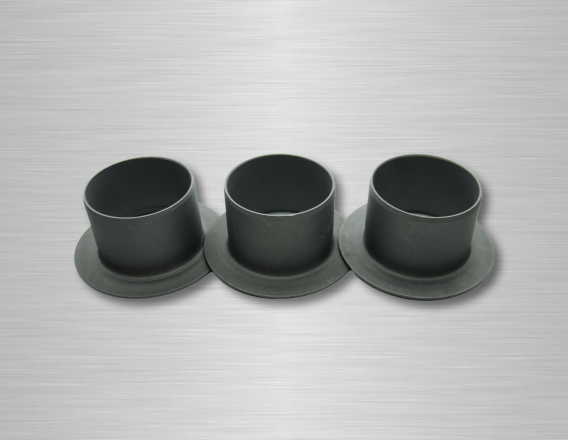

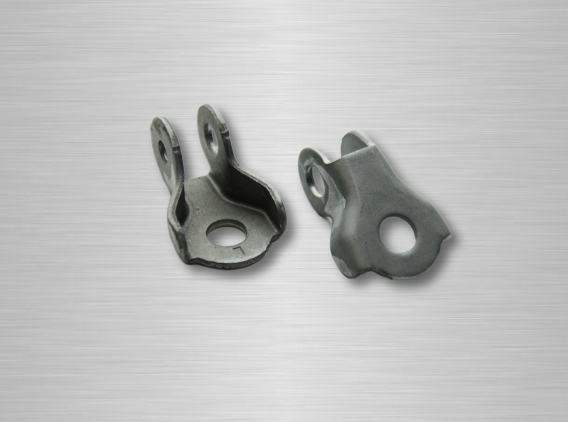

On-site Photography
Equipment Specifications
| Press Tonnage | Press Brand | Utilization Rate (12-hour Day Shift) | Quantity | Adjustment | Shut Height | Table Size | Slide Stroke | Press Type | Feeder | Air Cushion | Feed Thickness | Feed Height | Feed Width | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000T | Yitian | 75% | 1 | 200mm | 700-900mm | 3600*1500(mm) 4000*1500(mm) | 400 | Mechanical Press | 1 | No | 0.5-6.0（mm) | 380mm | 800(mm) | |
| 800T | Yitian | 75% | 1 | 200mm | 600-800mm | 3100*1300(mm) 3500*1300(mm) | 300 | Mechanical Press | 1 | No | 0.5-6.0（mm) | 380mm | 800(mm) | |
| 800T | Taida | 75% | 1 | 200mm | 400-1200mm | 3000*1800(mm) 3000*1800(mm) | 800 | Hydraulic Press | No | Yes | N/A | N/A | N/A | |
| 630T（twin-shaft） | Yawei | 75% | 1 | 120mm | 460-580mm | 2700*1100(mm) 2900*1200(mm) | 300 | Mechanical Press | 1 | No | 0.5-4.5（mm) | 380mm | 1000(mm) | |
| 500T（twin-shaft） | Yichao | 75% | 1 | 120mm | 480-600mm | 3000*1300(mm) 3200*1300(mm) | 300 | Mechanical Press | No | No | N/A | N/A | N/A | Robot |
| 400T（twin-shaft） | Yichao | 75% | 2 | 120mm | 480-600mm | 2800*1200(mm) 3000*1200(mm) | 300 | Mechanical Press | No | No | N/A | N/A | N/A | Robot |
| 400T（twin-shaft） | Yichao | 75% | 1 | 120mm | 480-600mm | 2800*1200(mm) 3000*1200(mm) | 300 | Mechanical Press | 1 | No | 0.5-4.5（mm) | 380mm | 600(mm) | |
| 400T（twin-shaft） | Xingli Forging | 75% | 1 | 120mm | 430-550mm | 2600*1100(mm) 2700*1100(mm) | 300 | Mechanical Press | 1 | No | 0.5-4.5（mm) | 380mm | 600(mm) | |
| 400T（twin-shaft） | Dige | 75% | 1 | 120mm | 430-550mm | 1000*2700mm) 1000*2700(mm) | 300 | Mechanical Press | 1 | No | 0.5-5.0（mm) | 200-300mm | 400(mm) | |
| 315T | Rongde | 75% | 1 | 120mm | 380-500mm | 1500*860(mm) 1800*880(mm) | 250 | Mechanical Press | No | No | N/A | N/A | N/A | Robot |
| 280T | Rongde | 75% | 1 | 120mm | 380-500mm | 950*700(mm) 1650*880(mm) | 280 | Mechanical Press | No | No | 0.5-4.0(mm) | 260mm | 500(mm) | |
| 280T | Rongde | 75% | 1 | 120mm | 380-500mm | 1400*860(mm) 1650*880(mm) | 250 | Mechanical Press | 1 | No | N/A | N/A | N/A | Robot |
| 250T（twin-shaft） | Koston | 75% | 1 | 120mm | 430-550mm | 700*2800(mm) 900*3000(mm) | 250 | Mechanical Press | 1 | No | 0.5-5.0（mm) | 200-300mm | 400(mm) |
| Press Tonnage | Press Brand | Utilization Rate (12-hour Day Shift) | Quantity | Adjustment | Shut Height | Table Size | Slide Stroke | Press Type | Feeder | Air Cushion | Feed Thickness | Feed Height | Feed Width | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 220T | Rongde | 75% | 2 | 120mm | 330-450mm | 1200*800(mm) 1450*840(mm) | 250 | Mechanical Press | No | No | N/A | N/A | N/A | Robot |
| 220T | Rongde | 75% | 3 | 120mm | 330-450mm | 1200*800(mm) 1450*840(mm) | 250 | Mechanical Press | No | No | N/A | N/A | N/A | |
| 200T（twin-shaft） | Yujin | 75% | 1 | 110mm | 430-550mm | 2000*1200(mm) 2000*1200(mm) | 250 | Mechanical Press | 1 | No | 0.5-4.0(mm) | 260mm | 600(mm) | |
| 200T（twin-shaft） | Qiaosen | 75% | 1 | 120mm | 380-500mm | 650*1850(mm) 840*2400(mm) | 250 | Mechanical Press | 1 | No | 0.5-5.0（mm) | 200-300mm | 400(mm) | |
| 200T | Dige | 75% | 6 | 110mm | 350-460mm | 630*1130(mm) 820*1400(mm) | 250 | Mechanical Press | 1 | No | 0.2-4.0（mm) | 200-300mm | 300(mm) | |
| 200T | World | 75% | 4 | 110mm | 340-450mm | 880*650(mm) 1400*840(mm) | 250 | Mechanical Press | No | No | N/A | N/A | N/A | |
| 160T | Dige | 75% | 4 | 100mm | 360-460mm | 550*990(mm) 800*1250mm) | 200 | Mechanical Press | 1 | No | 0.15-3.0（mm) | 200-300mm | 300(mm) | |
| 160T | World | 75% | 1 | 100mm | 300-400mm | 700*580(mm) 1170*750(mm) | 200 | Mechanical Press | No | No | N/A | N/A | N/A | |
| 125T | World | 75% | 1 | 90mm | 260-350mm | 620*520(mm) 1100*680(mm) | 180 | Mechanical Press | No | No | N/A | N/A | N/A | |
| 110 | Guanli | 75% | 2 | 80mm | 280-360mm | 470*910(mm) 600*1150(mm) | 180 | Mechanical Press | 1 | No | 0.15-3.0（mm) | 200-300mm | 260(mm) | |
| 110T | Yangli | 75% | 1 | 90mm | 260-350mm | 650*500(mm) 1150*680(mm) | 180 | Mechanical Press | 1 | No | 0.2-3.0(mm) | 180mm | 260(mm) | |
| 60T | World | 75% | 1 | 70mm | 230-300mm | 500*400(mm) 930*530(mm) | 135 | Mechanical Press | No | No | N/A | N/A | N/A |
